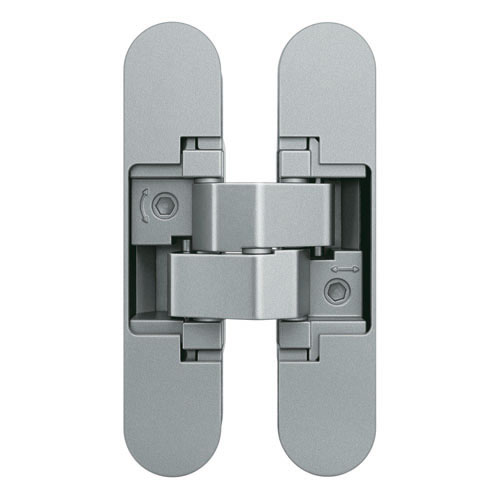

Simonswerk Anselmi AN 150 3D Concealed Hinge

£24.25 – £26.25

Best Seller Rank

#6 in Concealed Hinges (See Top 100 in Concealed Hinges)
#6 in Door Furniture (See Top 100 in Door Furniture)
#6 in Hinges (See Top 100 in Hinges)
SKU: Categories: , ,

Product Description

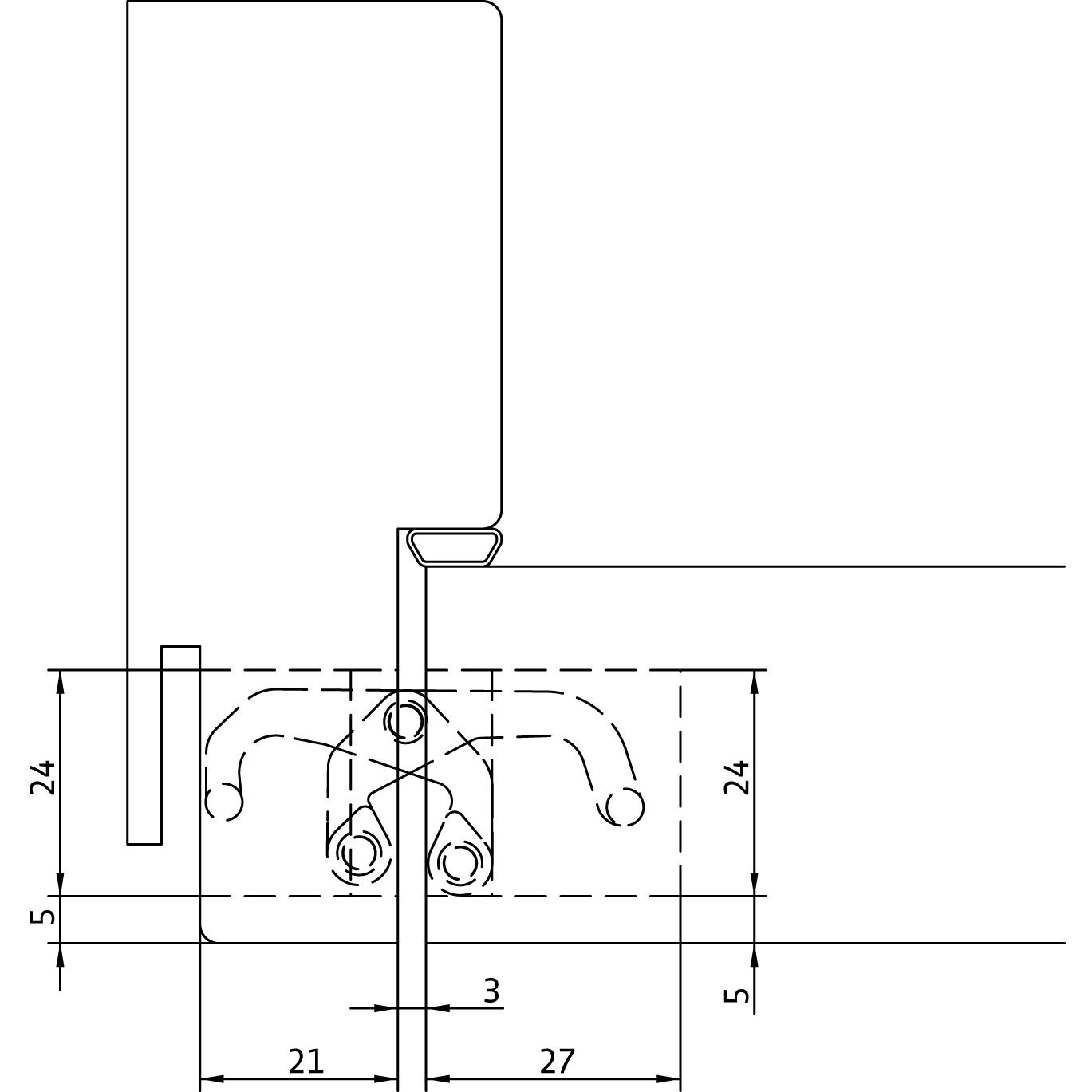

Anselmi AN 150 3D Concealed Hinge – for unrebated residential doors with 21mm reduced hinge frame part up to 40kg

Product Features –

  • reduced hinge frame part 21 mm
  • completely concealed hinge system
  • for timber and aluminium frames
  • for unrebated residential doors
  • 3D adjustment (side +/- 1,5 mm, height +/- 2,5 mm, compression +/- 1,0 mm)

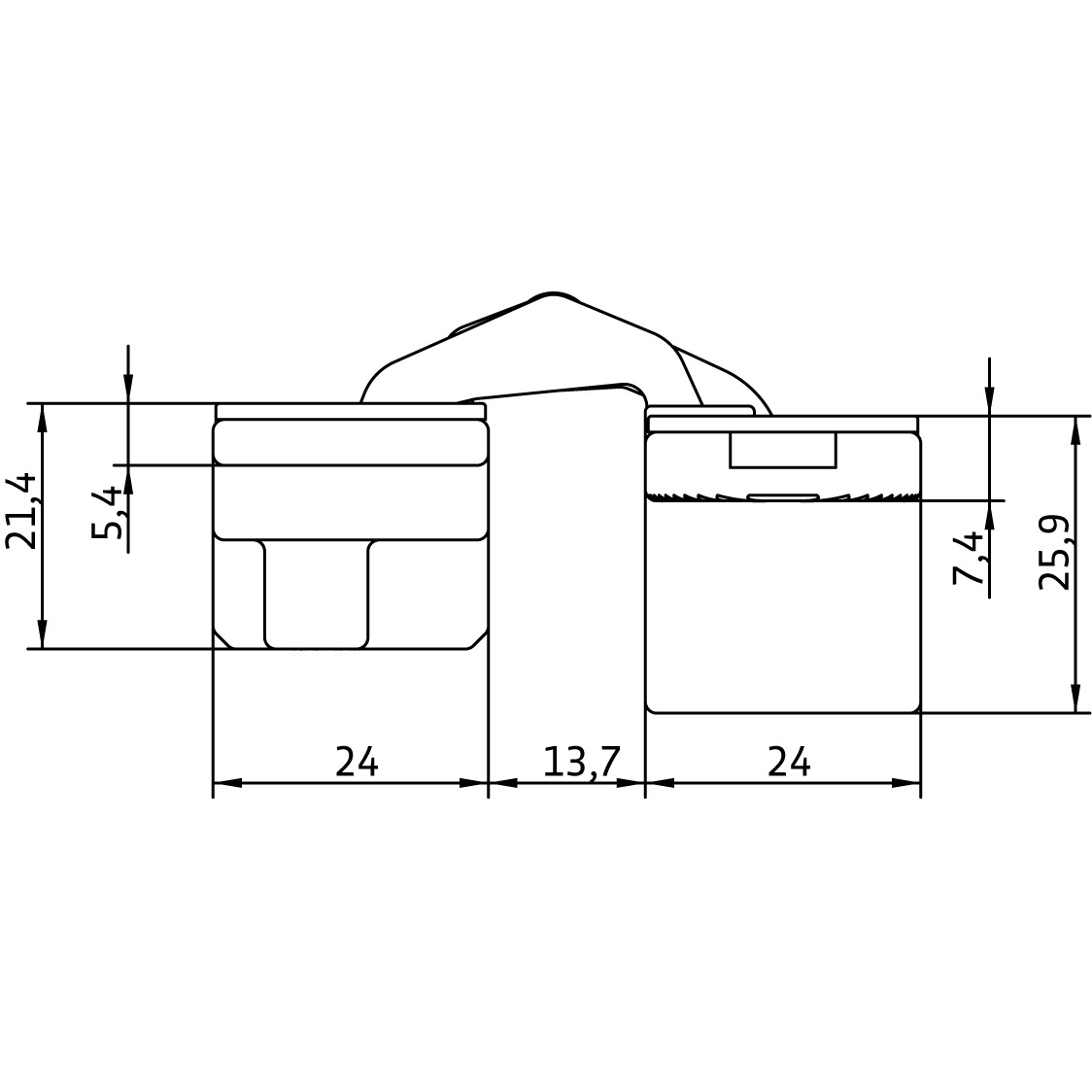

Technical Details –

  • Load capacity – 40.0 kg

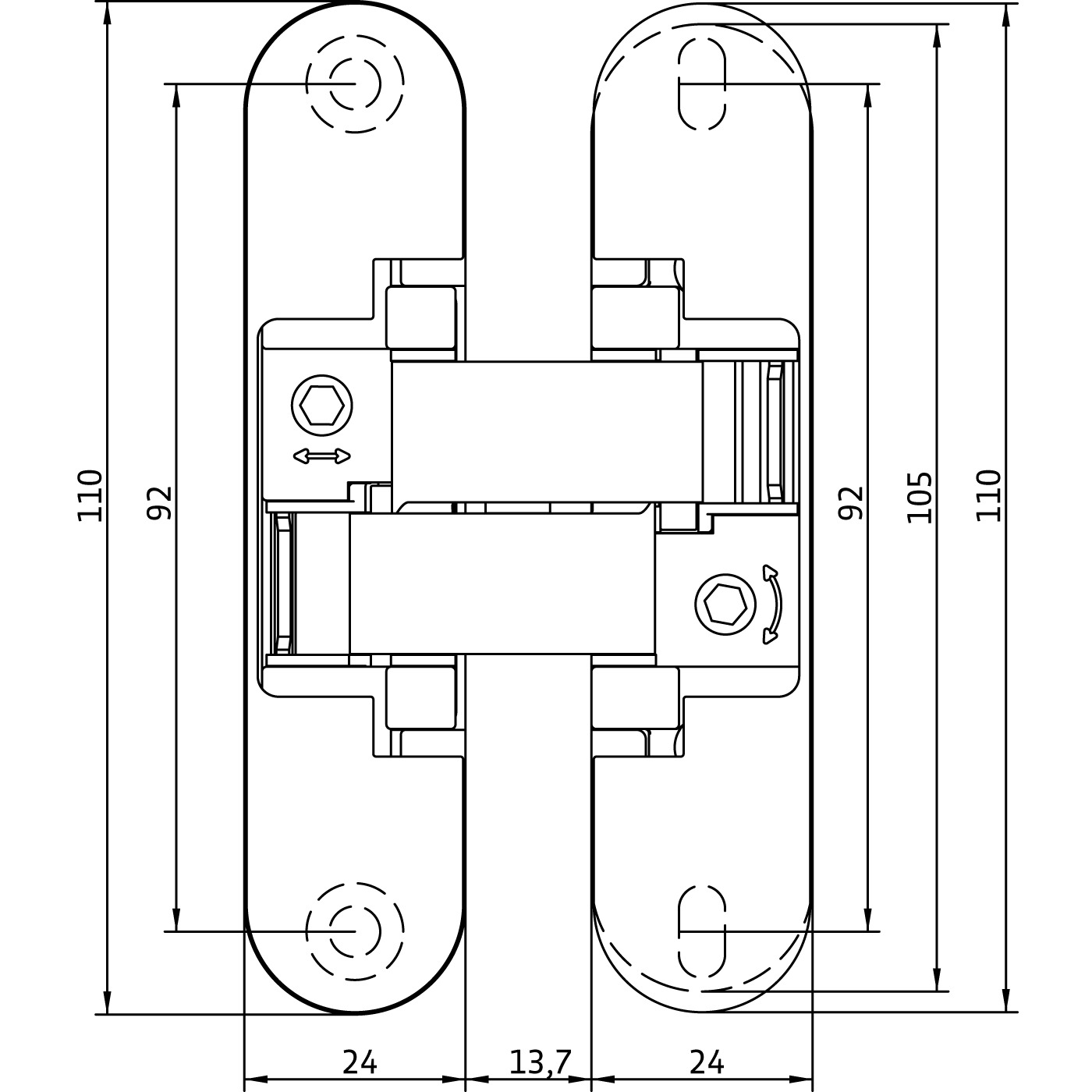

  • Overall length – 110.0mm
  • Width – door part – 24.0mm
  • Width – frame part – 24.0mm
  • Cutter diameter – 16.0mm
  • Collar ring diameter – 27.0mm

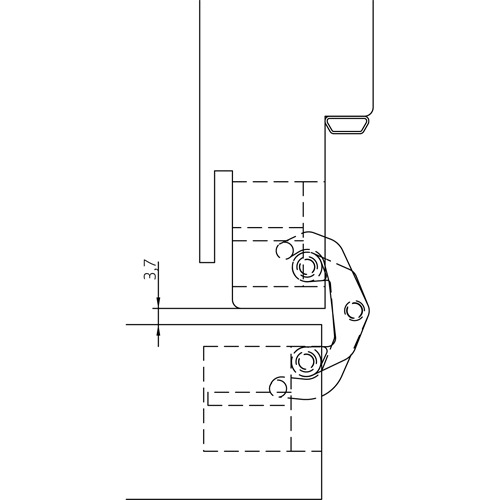

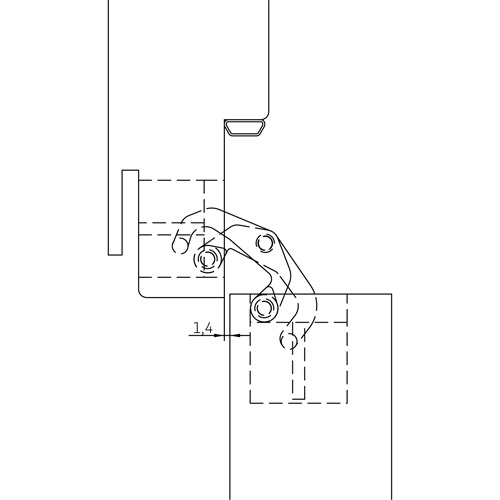

  • Opening angle – 180°

Suitable for –

  • Type of door leaf – Timber
  • Rebate – unrebated
  • Type of frame – aluminium frame, blind frame, block frame, casing frame

The load capacity mentioned above refers to the use of 2 hinges per door leaf. Sold individually and fixings included.

Available in a range of finishes – see drop down box.

Estimated delivery time between 2-3 working days.
