Product Description

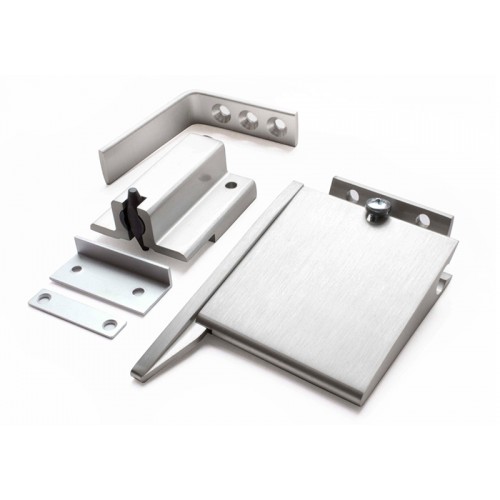

D&E Fire Rated Door Selector Wedge Shape – Silver.
The DS*FD door selector ensures that a pair of self closing fire doors with rebated meeting stiles or security astragals will always shut in the correct sequence automatically, no matter which door is opened first. Successfully tested to BS EN 1158
The MK2 fire door coordinator has a surface mounted rebate, therefore it’s not going to damage the fire doors frame structure & can be used on any door material.
This fire rated door selector ensures that the doors do not incorrectly overlap once the pair of doors are shut. This is particularly important for fire-rated doors and self-latching security doors as it maintains the doors seal.
Suitable for all door types.
- Max. door weight 120kg.
- Door width 700mm – 1000mm
- Door Thickness Min. 38mm – Max. 58mm
- Rebate – Max. 25mm
- Door closer suitable – Power Sizes 3-5
- 10 year Guarantee
The types of doors the MK2 door selectors are specified on are:
- Rebated doors
- Flush doors with security astragals
- Escape doors with a vertical rod device and horizontal rim exit device
- Flush doors that are used with a mortice lock/latch
- Flush doors with automatic flush bolts
For applications under difficult or unusual conditions please supply all available information for confirmation of specification.
Note: The surface mounted rebate catch must be fitted to meet regulations and for the product to work effectively.
Supplied complete with 4″ arm as standard, fixings and full Installation Instructions.
Longer 6″ & 8″ arms are available for thicker or wider doors and doors with astragals both internally and externally.
Extended rebated rebates are available to suit cranked astragal and for narrow door rebates – Please contact us for more information.
Estimated delivery time between 2-3 working days.
