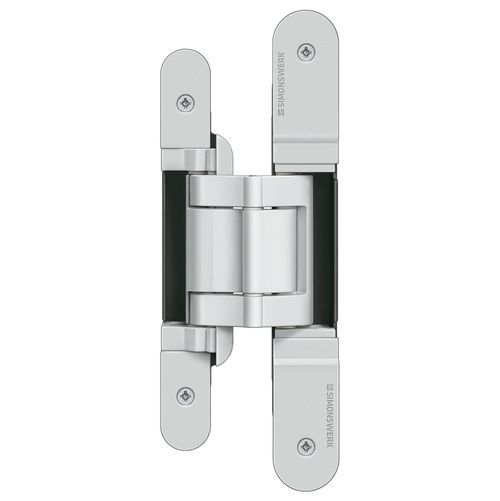

Simonswerk Tectus TE 380 3D Concealed Hinge



The Tectus TE 380 3D Concealed Hinge is a revolutionary hinge system that offers a sleek and modern look for doors, while also providing superior functionality. The hinge is designed to be completely concealed within the door and frame, resulting in a clean and uninterrupted aesthetic.


SKU: TE 380 3D Categories: , , Tag:

Product Description

Crafted from high-quality materials, the Tectus TE 380 3D Concealed Hinge offers incredible durability and longevity, making it a reliable choice for both residential and commercial applications. It also features a unique 3D adjustment system, which allows for precise and effortless adjustments in all three dimensions: height, depth, and lateral.

Installation of the Tectus TE 380 3D Concealed Hinge is simple and straightforward, whether you are renovating your home or outfitting a new commercial space, the Tectus TE 380 3D Concealed Hinge is the perfect solution for achieving a clean and modern look without sacrificing performance.

Product features:

  • Completely concealed hinge system
  • For timber, steel, or aluminium frames
  • For rebated residential doors
  • Sideways closed hinge body for a homogeneous mortise appearance
  • 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
  • Maintenance-free slide bearings

Technical Details:

  • Load capacity – 60.0 kg
  • Width (door part)- 20.0 mm
  • Length (door part) – 160.0 mm
  • Width (frame part) – 26.0 mm
  • Length (frame part) – 190.0 mm
  • Cutter diameter – 20.0 mm
  • Collar ring diameter – 30.0 mm
  • Opening angle – 180°

Suitable for:

  • Type of door leaf – Timber
  • Rebate – Rebated
  • Type of frame – aluminium frame, blind frame, block frame, casing frame, steel frame

Hinges are priced as singles.
The load capacity mentioned refers to the use of 2 hinges per door leaf.
Available in a range of finishes.
Fixings included.

TE 380 3D   Datasheet ⬀
TE 380 3D   Product Selector ⬀

Read more

Estimated delivery time between 2-3 working days.
